E4

4" 2-Way Component Kit

DETAILS

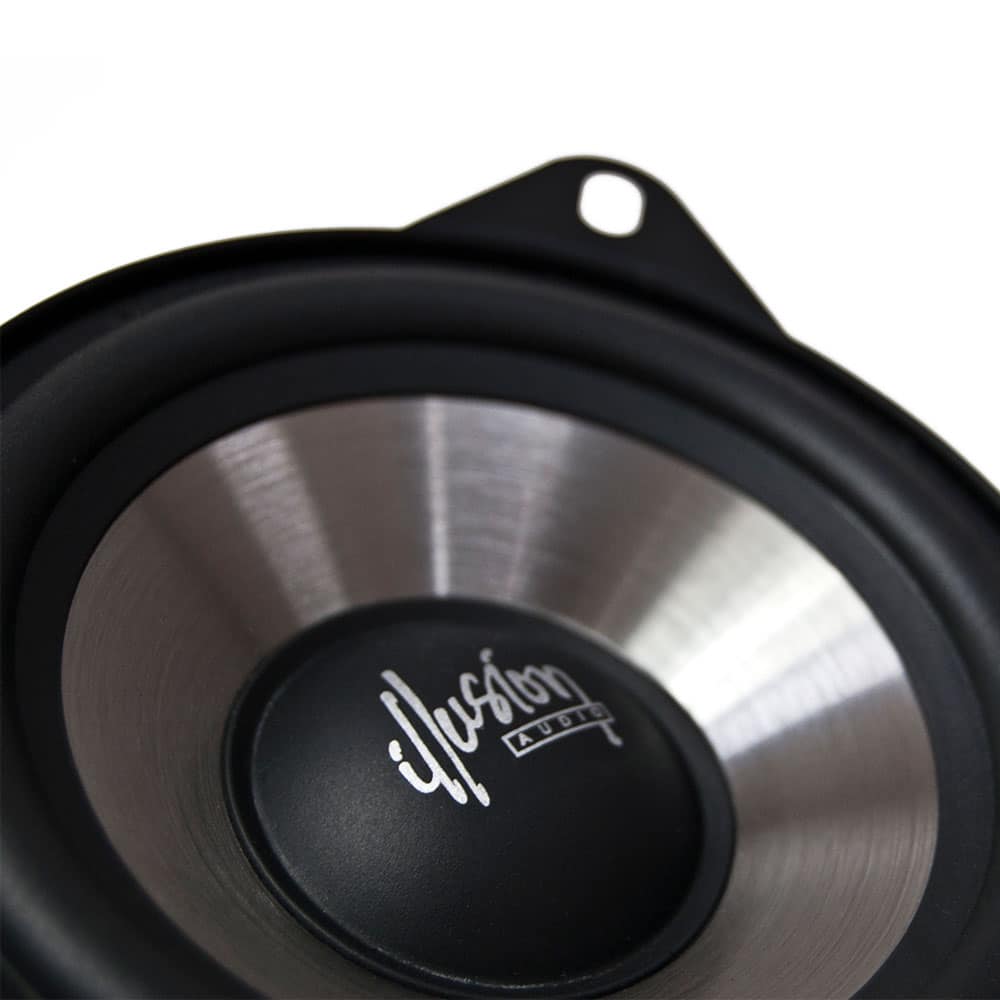

4 Inch 2-Way Component Kit –  Aluminum coated injection polypropylene cone with rubber surround powder coated steel basket

SPECIFICATIONS

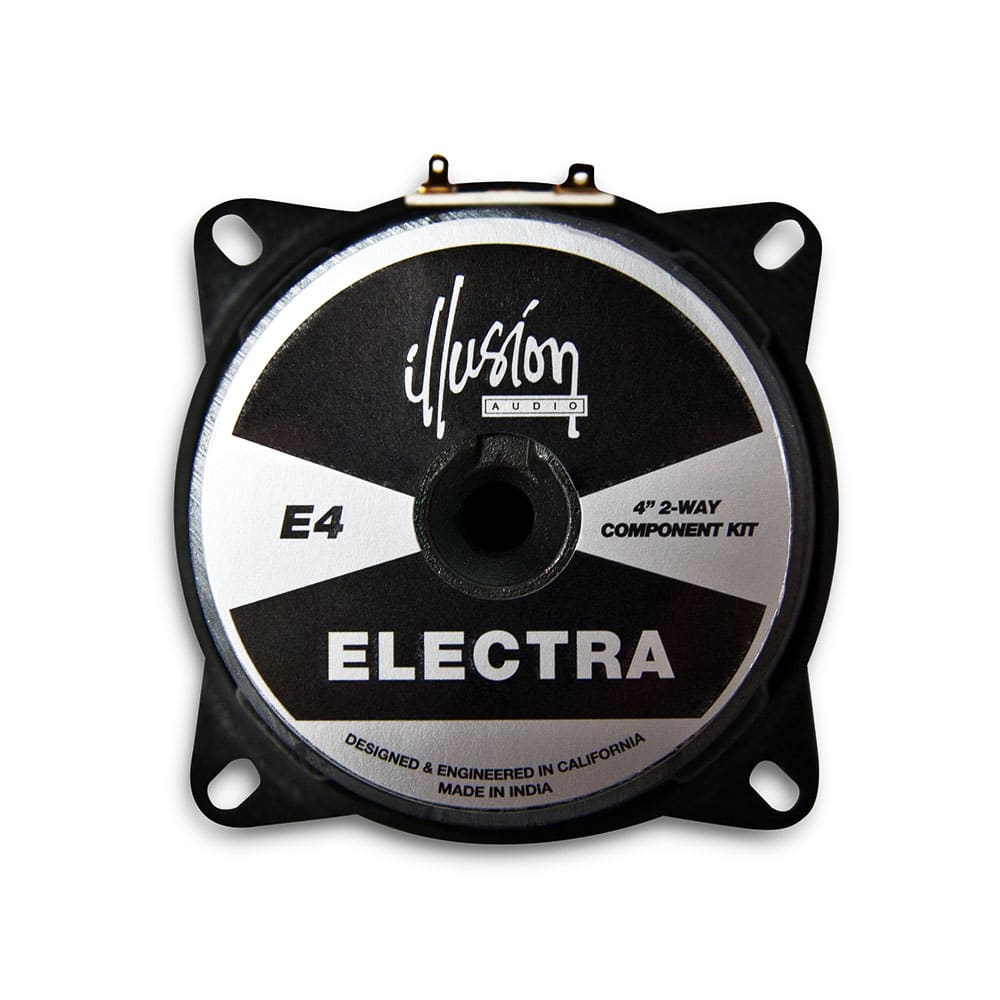

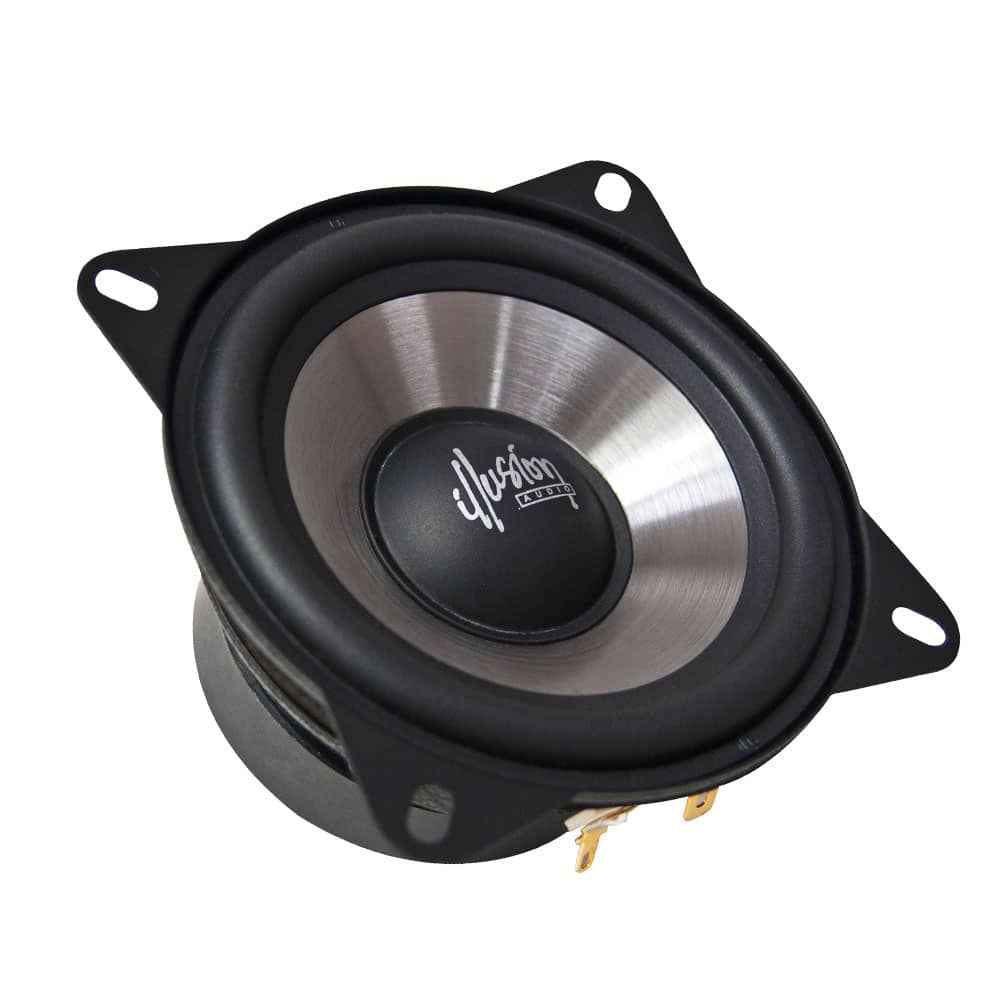

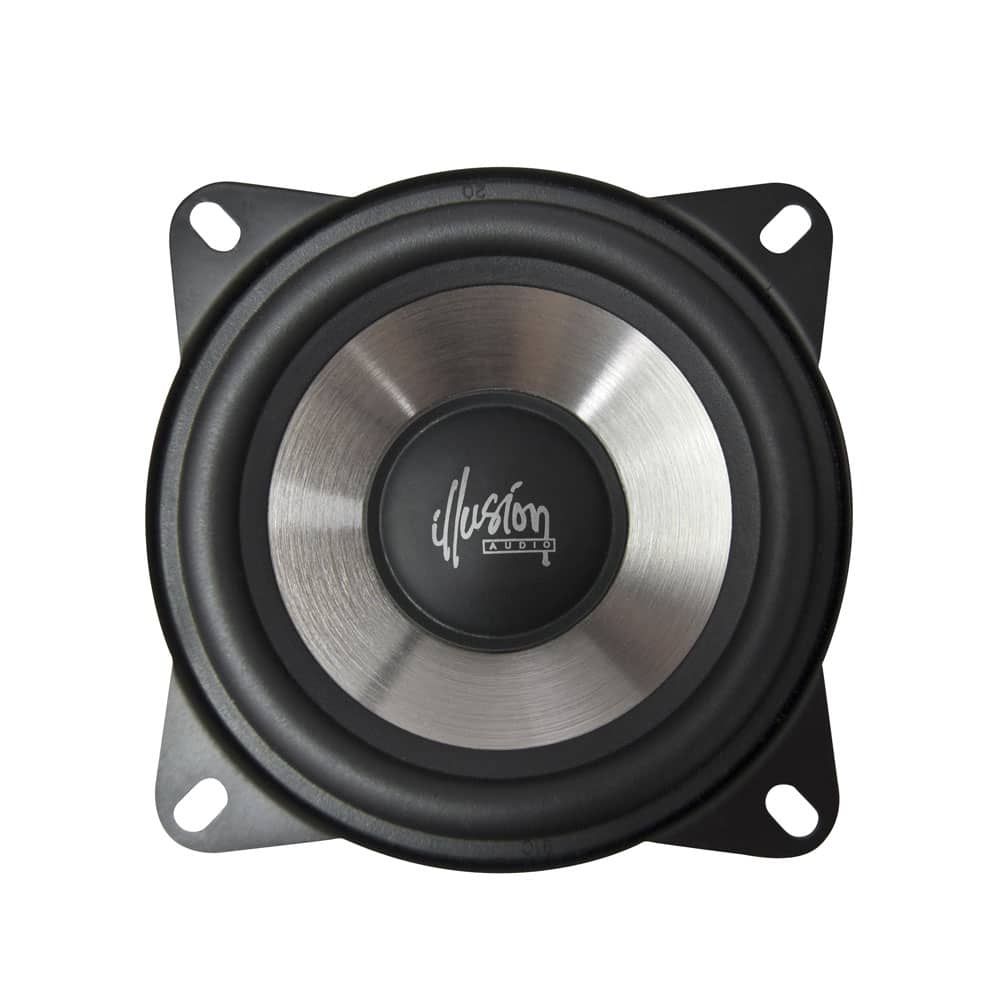

MIDBASS

  • Free Air Resonance: 99.26 Hz
  • Nominal Impedance: 4 Ohms
  • Sensitivity 2.83 v @ 1 meter: 87.6
  • Outside Diameter: 102 mm basket + 130 mm ears
  • Mounting Hole Diameter: 94.5 mm
  • Mount Depth: 52 mm
  • Maximum Linear Excursion: ± 2 mm

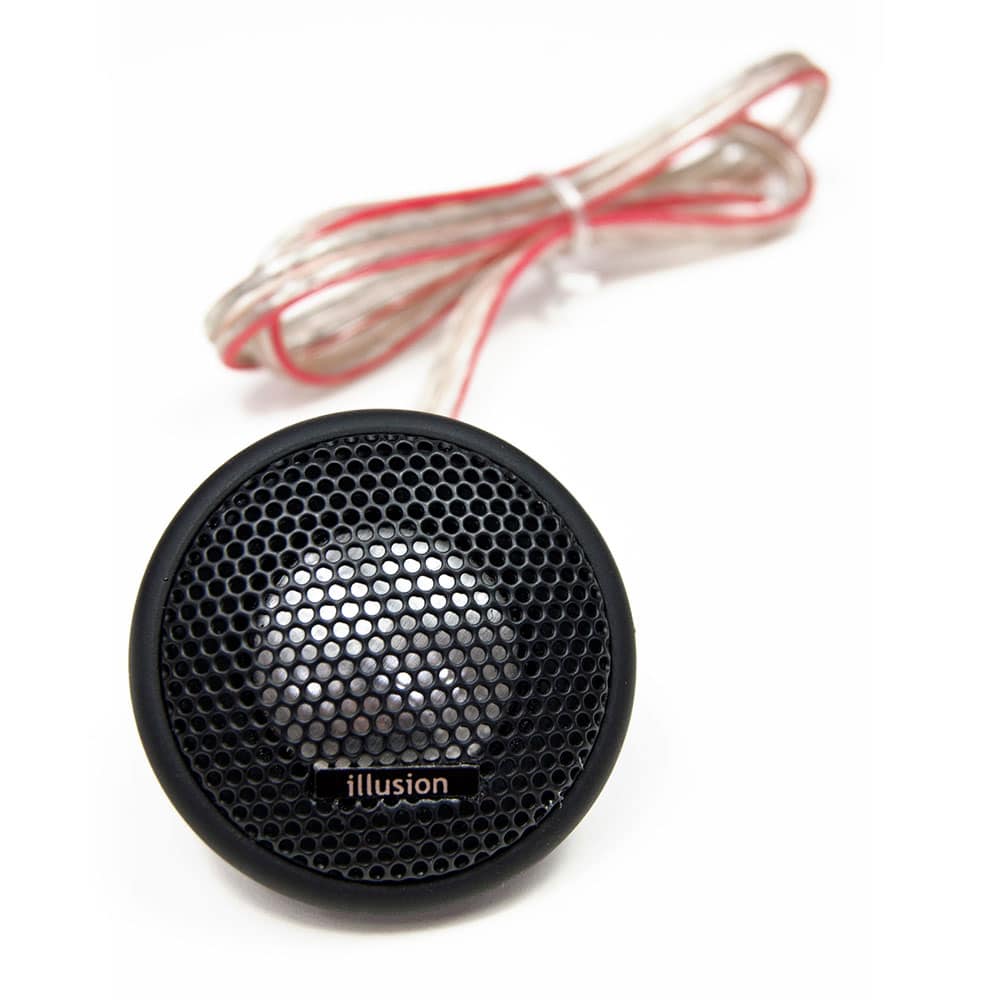

TWEETER

  • 25 mm aluminum dome
  • 4 ohm
  • Outside Diameter: 48.2 mm
  • Mounting Hole Diameter: 43.5 mm
  • Mount Depth: 11 mm

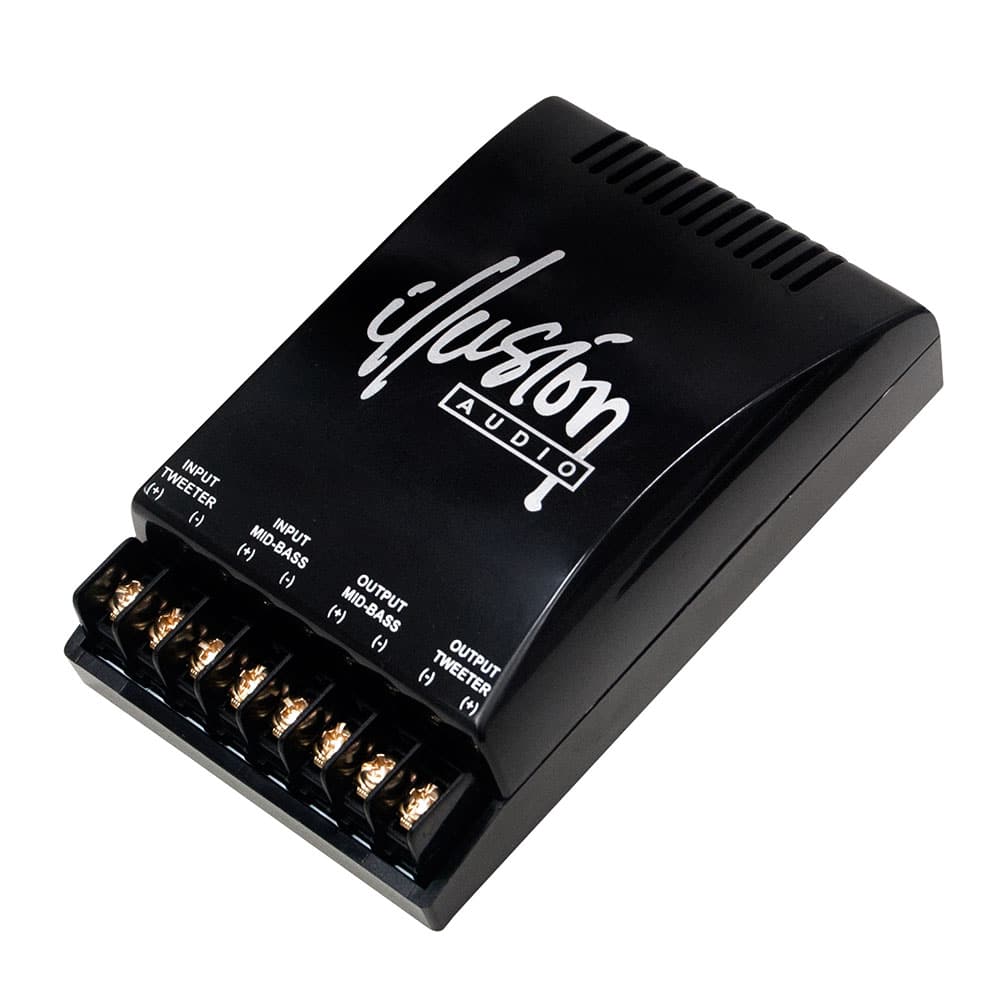

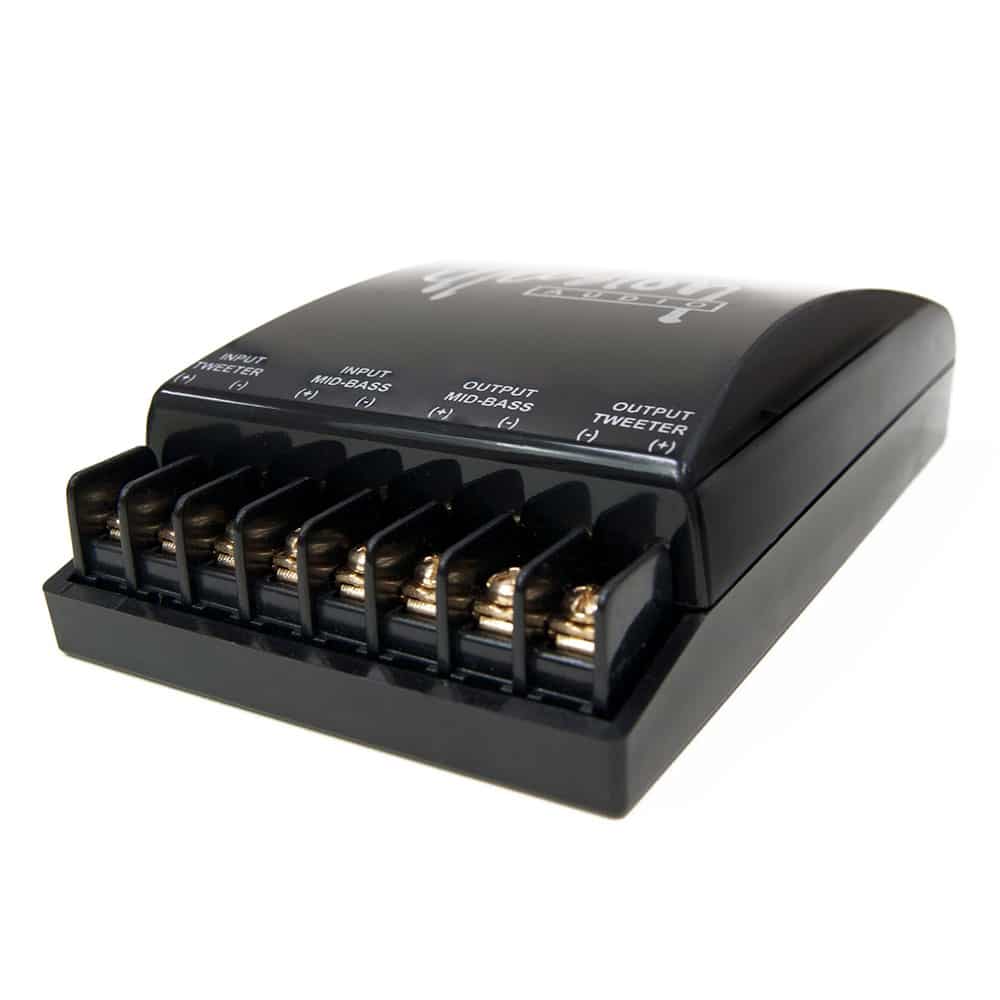

CROSSOVER

  • Bi Amp 12 dB crossover
  • Tweeter overload protection
  • Dimensions: 131 x 84 x 38 mm
